OPTICAL TECHNOLOGY
For precise gas detecting, we provide entire process from drawing a design of gas cell
and modification and recoating of optical mirror to warranty service.

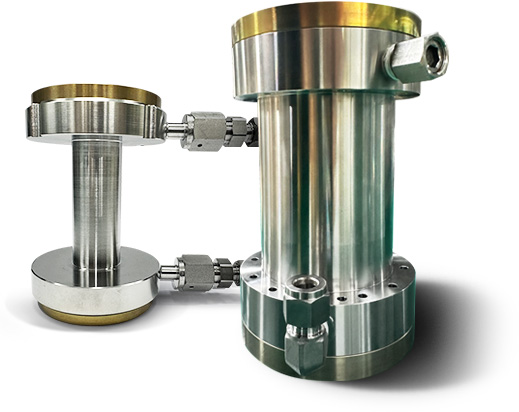

Optical Tech Gas Cell A’ssy
It is an equipment dedicated to FTIR equipment and is resistant to
corrosive gases with special internal coating treatment,
and is manufactured to withstand high temperatures and high pressures.
It can be set according to user settings, and it has off-the-shelf products
(pass length: 1M, 2M, 4.8M, 6M, 10M, 20M, and other users).
| Model | Long-Path Gas Cell (Metal) |
|---|---|
| Body Material | SS300 or Al60 |
| Body Coating | None or Ni Plating |
| Mirror Coating | Au |
| Window Material | ZnSe or KBr |
| Window Demension(mm) | ⌀15, T=3 |
|
Pass Length Cell Volume |
1 M
0.38 L
2 M
0.4 L
5 M
0.47 L
6 M
0.47 L
10 M
2 L
20 M
4.1 L
※ Length and Volume can be customized |
| Model | Long-Path Gas Cell (Platic) |
|---|---|
| Material | Plastic |
| Pass length | 970mm |
| Volume | 97cc |
| Working Temperature | 5~25℃ |

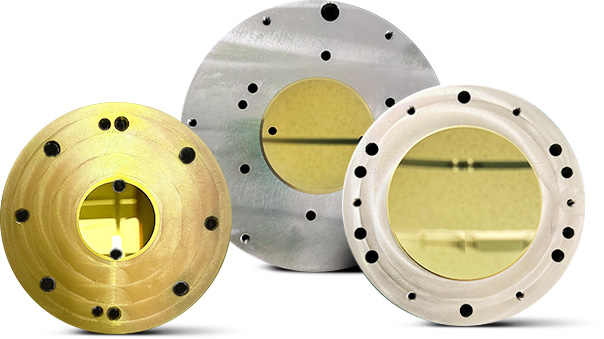

Optical Tech Mirror
Replacement consumables for FTIR equipment One of the key parts
of the Gas Cell accessories that determine the number of
light reflections inside the Gas Cell is a replacement consumable and
can be restored once depending on the condition of the product.
| Model | Optic Mirror (Metal) |
|---|---|
| Material | Al 60 series |
| Coating | Au |
| Protective Coating | O |
| Ravg | >98% at 2~12μm |
| Model | Optic Mirror (Plastic) |
|---|---|
| Material | Plastic |
| Coating | Au |
| Protective Coating | O |
| Ravg | >98% at 2~12μm |
