FTIR
We develop and distribute the equipment using FTIR and NDIR.

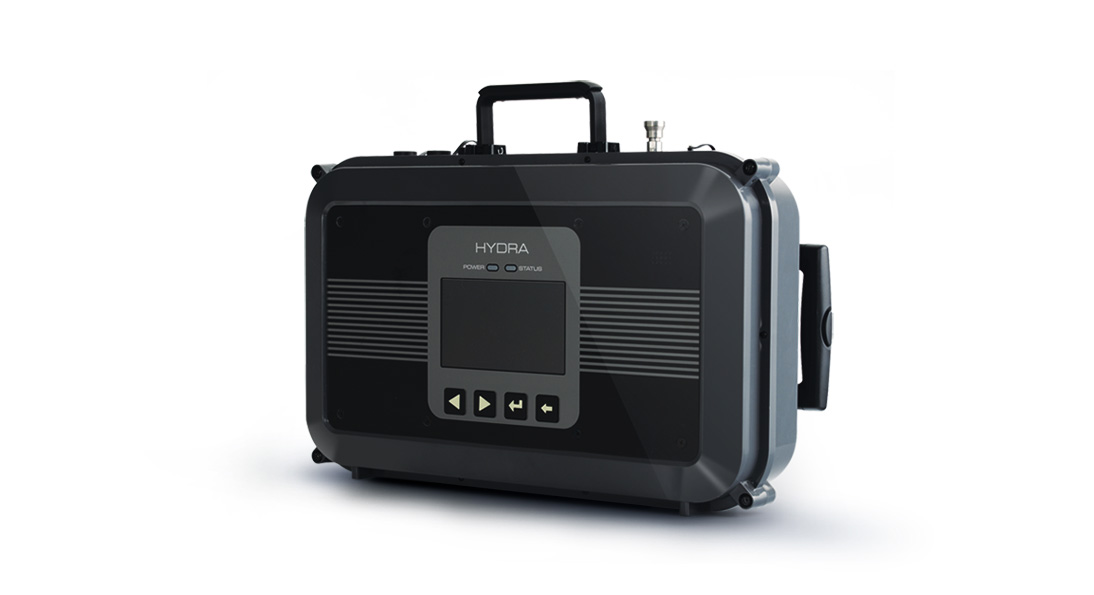

Hydra-1000G
| Measuring Priciple | FTIR Sensor |
|---|---|
| Dimension | 590 x 400 x 220 mm |
| Perfomance | 15 Gas Compounds |
| Scan Frecuency | 1 ~ 256 (Default 4 Times) |
| Resolution | 1cm-1 |
| Flow Rate | Max 2L/min |
| Wave Numer Range | 500 ~ 7500cm-1 |
| Operating Temperature | -10℃ ~ 50℃ |
| Storage Temperature | -20℃ ~ 60℃ (non-condensing) |
| Power Supply | 100~240VAC(50/60Hz), 3A |

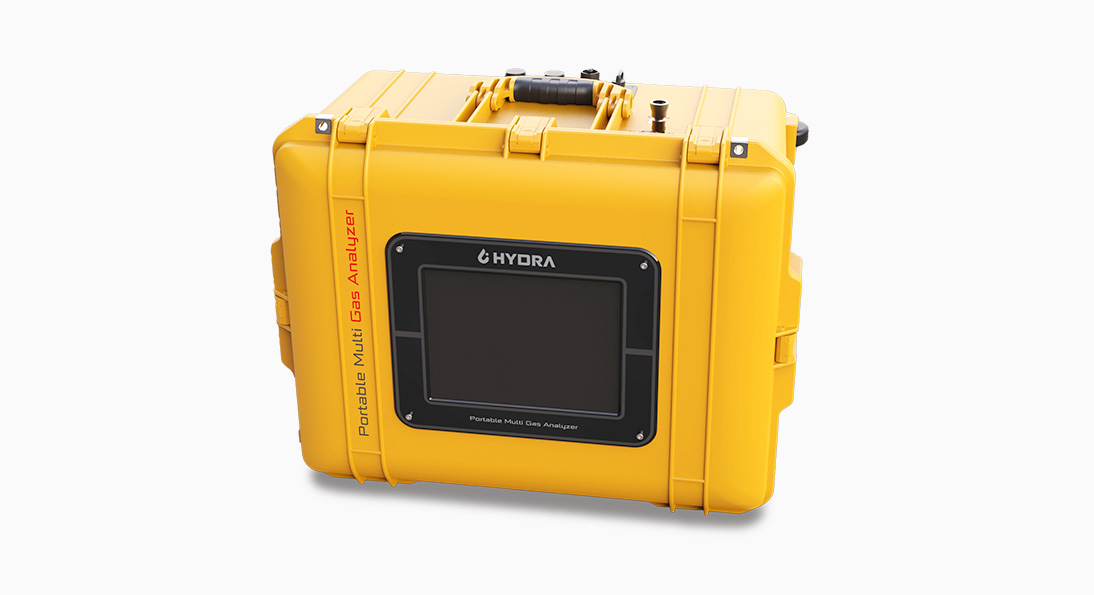

Hydra-2000G
| Measuring Priciple | FTIR Sensor |
|---|---|
| Dimension | 792 x 527 x 310 mm |
| Perfomance | Simultaneous Analysis of up to more than 7 Gas (Up to 50Gas) |
| Scan Frecuency | 4 Spectra / Second |
| Resolution | 1cm-1 (0.4cm-1 is an Option) |
| Flow Rate | 1~5L/min |
| Wave Numer Range | 800~4500cm-1 |
| Operating Temperature | 10℃ ~ 40℃ |
| Storage Temperature | -20℃ ~ 60℃ (non-condensing) |
| Power Supply | 300W, 100~240VAC(50/60Hz), 3A |
