NDIR
고성능 NDIR Gas Sensor Module
NDIR,MFIR 은 NDIR(Non-dispersive infrared absorption) 방식을 사용하여, 일반적인 Sensor보다 정밀한
선택적 감지를 위한 High Performance Gas Sensor Module 입니다.

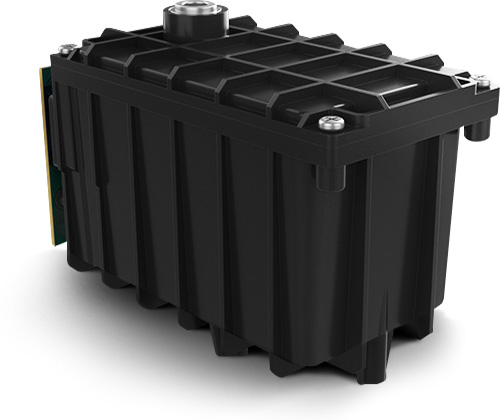

NDIR Gas Sensor
NDIR은 2CH, 4CH, 8CH로 구성되어 있고 NDIR Filter를
장착할 수 있으며 가스 측정에 적합한 고성능
Gas NDIR Sensor Platform 입니다.
| Model | CFIR (2CH) |
|---|---|
| Dimension | 50 mm X 60mm X 90 mm |
| Output Voltage Resolution (Input Voltage) | 24 - 50 V DC or POE |
| Linearity | ±10 % of measuring range |
| Warm Up Time | <30 Secs |
| Operating Temperature | 15°C to +35°C (32°F to 104°F) |
| Humidity | 15 - 90% RH (non-condensing) |
| Life Time | 5 years or longer |
|
Target Gas Measuring Ranges Resolution |
COS
20 ppm
1 ppm
C4F6
100 ppm
1 ppm
NF3
50 ppm
1 ppm
CH3F
500 ppm
10 ppm
|
| Model | MCIR (4CH, 8CH) |
|---|---|
| Dimension | 50 mm X 60mm X 90 mm |
| Output Voltage Resolution (Input Voltage) | 12 - 24 V DC |
| Linearity | ±10 % of measuring range |
| Warm Up Time | <30 Secs |
| Operating Temperature | 15°C to +35°C (32°F to 104°F) |
| Humidity | 15 - 90% RH (non-condensing) |
| Life Time | 5 years or longer |
|
Target Gas Measuring Ranges Resolution |
IPA
1000 ppm
1 ppm
COS
100 ppm
1 ppm
C4F6
200 ppm
1 ppm
FC-3283
100 ppm
1 ppm
CH2F2
1000 ppm
1 ppm
CH3F
1000 ppm
1 ppm
R-134a
(C2H2F4) 2000 ppm 2 ppm |

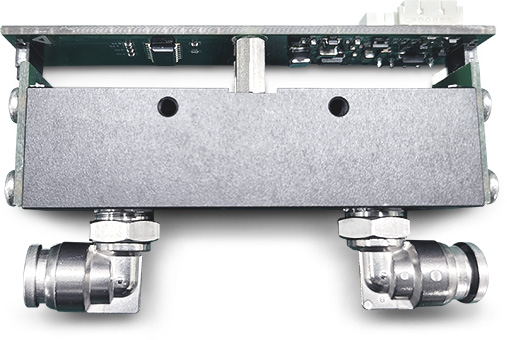

SCIR Gas Sensor
SCIR은 2CH, 4CH로 구성되어 있고 4개의 NDIR Filter를
장착할 수 있으며 최대 4개의 가스 측정에 적합한
고성능 가로형 Gas NDIR Sensor Platform 입니다.
| Model | Straight Type IR Sensor (2CH) |
|---|---|
| Dimension | 55 mm X 103 mm X 25.5 mm |
| Output Voltage Resolution (Input Voltage) | 12 - 24 V DC |
| Linearity | ±15 % of measuring range |
| Warm Up Time | <30 Secs |
| Operating Temperature | 5°C ~ 25°C |
| Humidity | 15 - 90% RH (non-condensing) |
| Life Time | 5 years or longer |
|
Target Gas Measuring Ranges Resolution |
C3H8
10000 ppm
10 ppm
FC-3283
500 ppm
3 ppm
C4F6
1000 ppm
4 ppm
|

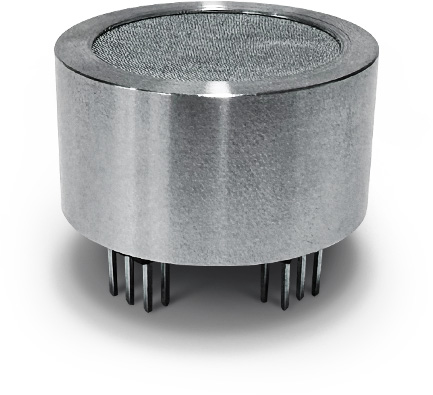

RIR Gas Sensor
RIR은 2CH로 구성되어 있고 2개의 NDIR Filter를
장착할 수 있으며 최대 2개의 가스 측정에 적합한
고성능 원형 Gas NDIR Sensor Platform 입니다.
| Model | Straight Type IR Sensor (2CH) |
|---|---|
| Dimension | 47 mm X 46.5 mm X 72.6 mm |
| Output Voltage Resolution (Input Voltage) | 12 - 24 V DC |
| Linearity | ±20 % of measuring range |
| Warm Up Time | <30 Secs |
| Operating Temperature | 5°C ~ 25°C |
| Humidity | 15 - 90% RH (non-condensing) |
| Life Time | 5 years or longer |
|
Target Gas Measuring Ranges Resolution |
FC-3283
500 ppm
1 ppm
CF4
1000 ppm
1 ppm
|
